Carbon Steel R Pad 90 Sch80-Sch40 ASTM A420 WPL6 36"x16" Pipe Fitting

Name: Carbon Steel R Pad 90 Sch80Sch40 ASTM A420 WPL6 36quotx16quot Pipe Fitting
Brand: TOBO
Price: 1 USD

China Carbon Steel R Pad 90 Sch80-Sch40 ASTM A420 WPL6 36"x16" Pipe Fitting wholesale

Brand Name : TOBO

Model Number : ASTM A420 WPL6

Certification : EN 10204 3.1 | ISO 10474 3.1 B

Place of Origin : China

MOQ : 1pcs

Price : Depending on quantity

Payment Terms : T/T, L/C, Western Union

Supply Ability : 3,0000pcs per month

Delivery Time : 15-30 working days depending on quantity

Packaging Details : Standard export sea-worthy packing

Product Name : Reinforcement Pad

Material : ASTM A420 WPL6

Size : 36"x16" or as required

Wall Thickness : Sch40-Sch30 or as required

Packing : Standard Packing or as required

MOQ : 1 Piece

Contact Now

Carbon Steel R Pad 90 Sch80-Sch40 ASTM A420 WPL6 36"x16" Pipe Fitting

Name	CS Pipe Fitting R Pad 90 Sch80-Sch40 ASTM A420 WPL6 36"x16" Pipe Fitting
Brand	TOBO
Certificates	EN 10204 3.1 \| ISO 10474 3.1 B
Advantages	1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 3. 15 years' QC team service & sales management API& ASTM trained engineers. 4. More than 150 customers spread worldwide.
MOQ	1pcs
Delivery time	10-100 days depending on quantity
Payment terms	T/T or Western Union or LC
Shipment	FCA Tianjin/Shanghai, CFR, CIF, etc
Application	Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks	Other materials and drawings are available.

What is a Reinforcement PAD?

Reinforcing Pad or RePAD or RF Pad is a donut-shaped pad that goes around the branch of a branch joint to add strength to the joint. It resembles a round metal washer that has been bent to conform to the curvature of the pipe.With the increase in pipe size, the cost of branch connection fittings increases. Sometimes, such fittings are not readily available as standard pieces. So, it is a standard method to fabricate the tee by cutting a hole in the header and welding the branch in the pipe. But the section where the straight pipe is punctured becomes weak section due to the presence of that hole. So to handle the pressure and reduce the stress concentration in that region the thickness is increased locally in the form of reinforcement pad or RF Pad. Similar situation arises for Pressure Vessel Nozzle Connections. To increase the pressure and load carrying capability of the equipment nozzles, RF Pad are welded. These reinforcement pads provides additional strength and capability to the pipe.

Uses of Reinforcing PAD

1. Equipment nozzle connections are normally reinforced so that nozzles can carry more loads and moments from the piping side.

2. Sometimes, Reinforcing pads are provided in-between shoe or saddle support and parent pipe when parent pipe thickness is less than required.

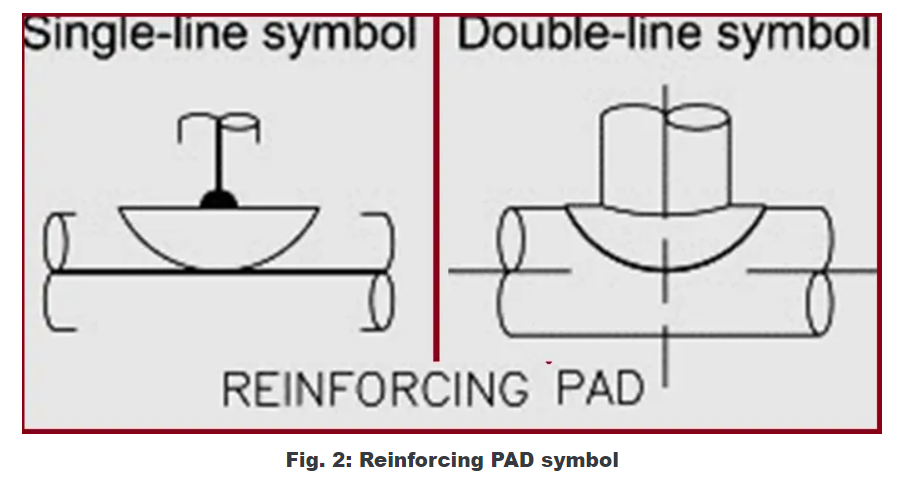

Reinforcing pad symbol in Drawings

Fig. 2 shows the normal RF Pad symbol that is used in piping drawings.

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How long is the delivery ?

A: 15-30 working days

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.

If any questions,you can call me mobile phone at any times:0086-15710108231

Carbon Steel R Pad 90 Sch80-Sch40 ASTM A420 WPL6 36"x16" Pipe Fitting
